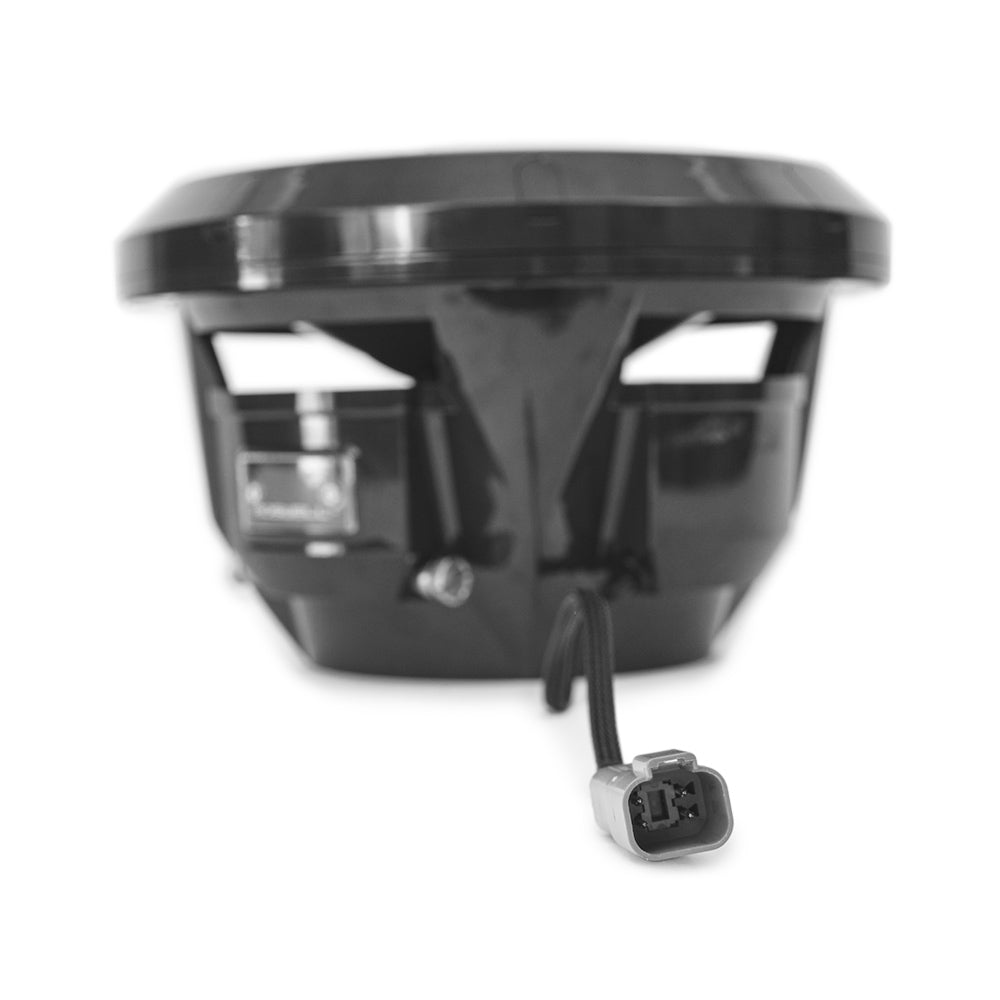

R1 10" Subwoofer

SKU: C920-1802

Each sold separately

The R1 10” subwoofers have a truly versatile design that will outperform in an infinite baffle configuration, as well as being suited for sealed and ported enclosures. These subs will handle 250 watts RMS and have an excellent low-end extension. For a little extra flash, the R1 10” grill option has built-in RGB LEDs that backlight the cone to create your desired visual atmosphere. All of this is packed into durable plastic housings that need just over 5” of mounting depth, giving you ample placement possibilities. The only limit is your imagination.

Features

• Integrated RGB LEDs backlight the cone to create your desired visual atmosphere
• Custom machined wire terminals allow for rock-solid wire connections
• Klippel® tested and certified to guarantee acoustic performance
• Press fit inserts hide installation hardware which provides a clean finished look
• Klippel® optimized motor structure for maximum power handling and sound quality
• Extreme salt and UV resistance



Specifications

Continuous Power (RMS)

• 250 Watts

Peak Power

• 500 Watts

Sensitivity

• 88dB @ 1W/1M

Frequency Response (+ / - 3 dB)

• 35Hz – 300 Hz

Impedance Ω

• 4Ω

Dimensions

• NOMINAL DIAMETER: 10 in I 25.4 cm
• OVERALL DIAMETER: 10.85 in I 27.5 cm
• BASKET DIAMETER: 9.25 in I 23.5 cm
• MOUNTING DEPTH: 5.08 in I 12.9 cm
• TOTAL DEPTH: 7.02 in I 17.8 cm
